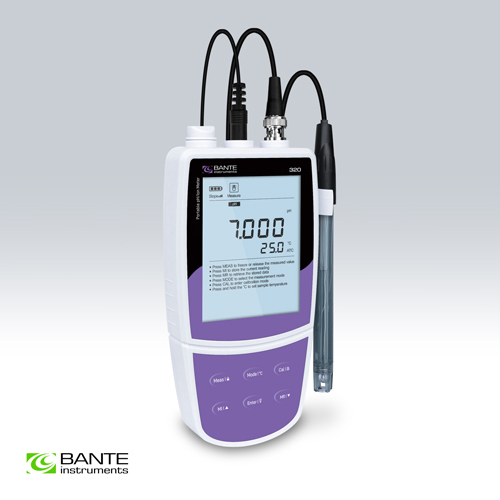

Bante320 Portable pH/Ion Meter
Professional portable pH/ion meter with pH, oxidation-reduction potential and ion concentration measurement modes, setup menu contains 12 options, accuracy 0.002 pH.
Features:
pH
? 1 to 5 points calibration with automatic recognition for USA, NIST and DIN buffers.
? Automatic electrode diagnosis shows the pH slope and zero offset.
ORP
? 1 point offset calibration allows adjusting the displayed value to a known standard.
? Relative and absolute millivolt modes ensure the reliable ORP measurements.
Ion Concentration
? 2 to 5 points calibration, including the selection of 8 concentration points.
? Automatic electrode diagnosis shows the calibration points and slopes.
? Direct ion concentration readout simplifies the measurement process.
? Selectable concentration units (ppm, mg/L, mol/L, mmol/L) and ionic valency.
Other Features
? Automatic temperature compensation ensures accurate readings over the entire range.
? Auto-read function senses and locks the measurement endpoint.
? Calibration due alarm reminds user to calibrate the meter regularly.
? Auto-power off effectively conserves battery life.
? Setup menu allows setting the pH buffer set, number of calibration points, resolution, stability
criteria, temperature unit, date and time, etc.
? Reset function automatically restores all settings to the factory defaults.
? Expanded memory stores or recalls up to 500 data sets.
? USB communication interface enables easy data transfer to a PC.
? DAS software is capable of receiving data, recording measurements at specified intervals,
exporting data to Excel.
? Multi-mode power scheme (batteries, power adapter, USB port) ensures the smooth operation
of the meter.
Model | Bante320 | |
pH | ||
Range | -2.000 to 20.000 pH | |
Resolution | 0.001 / 0.01 / 0.1, selectable | |
Accuracy | ±0.002 pH | |
Calibration | 1 to 5 points | |
pH Buffer Options | USA / NIST / DIN / 2 custom buffers | |
ORP | ||
Range | -1999.9 to 1999.9 mV | |
Resolution | 0.1 / 1, selectable | |
Accuracy | ±0.2 mV | |
Calibration | 1 point | |
Measurement Modes | Relative / Absolute mV | |
Ion Concentration | ||
Range | 0.001 to 19999 (depends on electrode range) | |
Resolution | 0.001, 0.01, 0.1, 1, automatic | |
Accuracy | ±0.5% F.S. (monovalent), ±1% F.S. (divalent) | |
Calibration | 2 to 5 points | |
Calibration Solutions | 0.001 / 0.01 / 0.1 / 1 / 10 / 100 / 1000 / 10000 | |
Measurement Units | ppm, mg/L, mol/L, mmol/L | |
Temperature | ||
Range | 0 to 105°C / 32 to 221°F | |
Resolution | 0.1 | |
Accuracy | ±0.5°C / ±0.9°F | |
Calibration | 1 point | |
Calibration Range | Reading ±10°C/°F | |
Other Specifications | ||
Temperature Compensation | 0 to 100°C / 32 to 212°F, manual or automatic | |
Hold Function | Manual / Auto-read measurement endpoint | |
Stability Criteria | Low / High | |
Calibration Due Alarm | 1 to 31 days or off | |
Auto-Power Off | 10 / 20 / 30 minutes after last key pressed | |
Memory | Stores up to 500 data sets | |
Output | USB communication interface | |
Connector | BNC, 3.5 mm jack socket | |
Display | Custom LCD (80 × 60 mm) | |
Power Supply | 3 × 1.5V AA batteries or 5V DC power adapter | |
Battery Life | Approximately 150 hours without backlight | |
Environmental Conditions | 0 to 50°C / 32 to 122°F, relative humidity < 80% | |
Dimensions | 170 × 85 × 30 mm | |
Weight | 300 g |
Ordering Code | Meter Includes |
Bante320-S | E201-BNC pH electrode |
TP-10K temperature probe | |
pH 4.01, 7.00, 10.01 buffer solutions | |
| Electrode clip | |
Carrying case | |
Bante320-UK
| P11 glass pH electrode |
TP-10K temperature probe | |
pH 4.01, 7.00, 10.01 buffer solutions | |
| Electrode clip | |
Carrying case |
| Items | Description |
| E201-BNC pH Electrode | For measuring general water samples |
| E202-BNC pH Electrode | For measuring semisolid and gel samples |
| E203-BNC pH Electrode | For outdoor use |
| E205-BNC pH Electrode | For piercing and measuring soft solids |
| E206-BNC pH Electrode | For measuring micro-volume samples |
| E207-BNC pH Electrode | For measuring non-aqueous samples |
| E208-BNC pH Electrode | For measuring wastewater |
| E209-BNC pH Electrode | For measuring samples with hydrofluoric acid |
| E210-BNC pH Electrode | For measuring high temperature samples |
| E211-BNC pH Electrode | For measuring pure water |
| P11 pH Electrode | For measuring mildly corrosive samples |
| E501 ORP Electrode | For measuring samples with strong redox potential |
| E502 ORP Electrode | For measuring samples with weak redox potential |
| ISE-NH3 Ammonia Electrode | Range: 0.01 to 17000 ppm |
| ISE-NH4 Ammonium Electrode | Range: 0.1? to 18000 ppm |
| ISE-Br Bromide Electrode | Range: 0.4 to 81000 ppm |
| ISE-Cd Cadmium Electrode | Range: 0.1 to 11200 ppm |
| ISE-Ca Calcium Electrode | Range: 0.02 to 40100 ppm |
| ISE-Cl Chloride Electrode | Range: 1 to 35000 ppm |
| ISE-Cu Copper Electrode | Range: 0.06 to 6400 ppm |
| ISE-CN Cyanide Electrode | Range: 0.03 to 260 ppm |
| ISE-F Fluoride Electrode | Range: 0.02 to 1900 ppm |
| ISE-I Iodide Electrode | Range: 0.06 to 127000 ppm |
| ISE-Pb Lead Electrode | Range: 0.2 to 20800 ppm |
| ISE-NO3 Nitrate Electrode | Range: 0.4 to 62000 ppm |
| ISE-K Potassium Electrode | Range: 0.04 to 39000 ppm |
| ISE-Ag Silver Electrode | Range: 0.01 to 107900 ppm |
| ISE-S Sulfide Electrode | Range: 0.003 to 32000 ppm |
| ISE-Na Sodium Electrode | Range: 0.002 to 69000 ppm |
| pH Buffer Solutions | For calibrating pH electrode |
| pH Electrode Cleaning Solutions | For electrode cleaning and reactivating |
| pH Electrode Storage Solution | For electrode maintenance and storage |
| ORP Standard Solution | For calibrating ORP electrode |
| Ammonia Standard Solution | For calibrating ammonia ion selective electrode |
| Ammonium Standard Solution | For calibrating ammonium ion selective electrode |
| Bromide Standard Solution | For calibrating bromide ion selective electrode |
| Cadmium Standard Solution | For calibrating cadmium ion selective electrode |
| Calcium Standard Solution | For calibrating calcium ion selective electrode |
| Chloride Standard Solution | For calibrating chloride ion selective electrode |
| Copper Standard Solution | For calibrating copper ion selective electrode |
| Fluoride Standard Solution | For calibrating fluoride ion selective electrode |
| Iodide Standard Solution | For calibrating iodide ion selective electrode |
| Lead Standard Solution | For calibrating lead ion selective electrode |
| Nitrate Standard Solution | For calibrating nitrate ion selective electrode |
| Potassium Standard Solution | For calibrating potassium ion selective electrode |
| Silver Standard Solution | For calibrating silver ion selective electrode |
| Sodium Standard Solution | For calibrating sodium ion selective electrode |
| Ionic Strength Adjusters | For adjusting pH and background ionic strength |
| USB Cable | For transferring data or connecting power adapter |
| 5V DC Power Adapter | For connecting external power source |
Ordering Code | Dimensions and Weights |
Bante320-S | 35 × 10 × 30 cm, 1.5 kg |
Bante320-UK | 35 × 10 × 30 cm, 1.5 kg |
