Electrodes

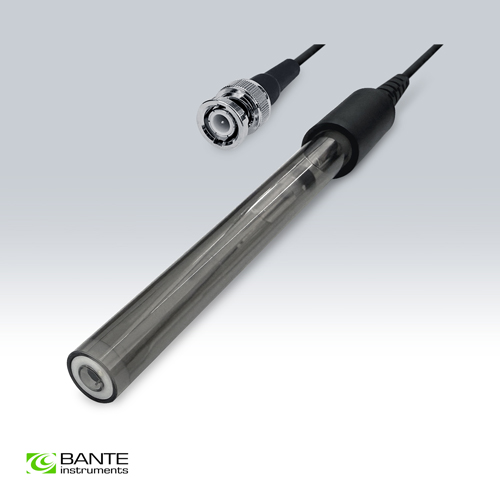

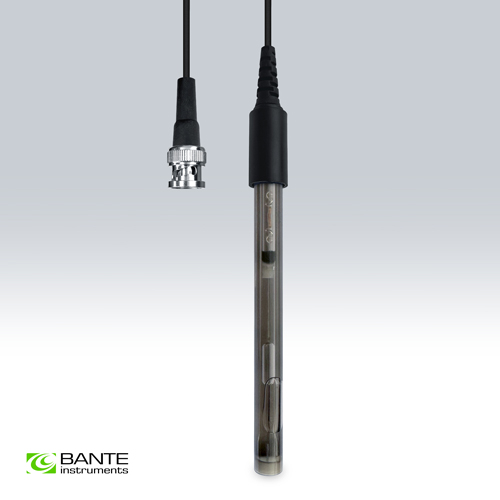

E202-BNC pH Electrode
Flat surface pH electrode, suitable for measuring semisolid, gel and viscous samples.
Features:
? Combination pH electrode
? Teflon liquid junction
? Flat surface pH-sensitive membrane ensures accurate surface pH measurement by
maintaining close contact with samples
? Easy to clean
Typical Samples:
Paint, dye, printing ink, paper, textile, cosmetic, cream, ointment, yogurt, fruit, vegetable, meat,
etc.
Model | E202-BNC | |
Range | 0 to 14 pH | |
Response Time | 95% response in 30 seconds | |
Operating Temperature | 0 to 60°C / 32 to 140°F | |
Reference | AgCl, single junction | |
Liquid Junction | Teflon | |
Body Type | Epoxy | |
Cable Length | 1 m | |
Connector | BNC | |
Dimensions | 110 × 12(?) mm | |
Weight | 60 g |
Ordering Code | Electrode Includes |
E202-BNC | --- |
| Items | Description |
| pH Buffer Solutions | For calibrating pH electrode |
| pH Electrode Cleaning Solutions | For electrode cleaning and reactivating |
| pH Electrode Storage Solution | For electrode maintenance and storage |
Ordering Code | Dimensions and Weights |
E202-BNC | 23 × 10 × 5 cm, 0.1 kg |
