Electrodes

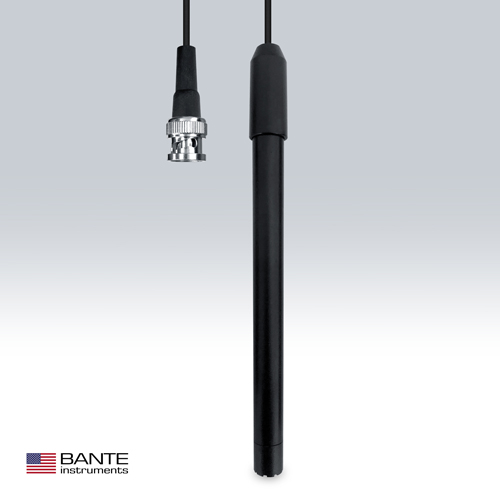

ISE-NH3 Ammonia Electrode
Ammonia ion selective electrode, range: 0.01 to 17000 ppm.
Features:
? Combination ammonia ion selective electrode
? No reference electrode required
? Threaded-cap design for easy filling electrolyte solution
? Long service life
Model | ISE-NH3 | |
Concentration Range | 0.01 to 17000 ppm | |
Slope | 52 to 59 mV/decade | |
pH Range | 11 to 13 pH | |
Operating Temperature | 5 to 50°C / 41 to 122°F | |
Interferences | Hydrazine | |
Body Type | Epoxy | |
Cable Length | 1 m | |
Connector | BNC | |
Dimensions | 150 × 12(?) mm | |
Weight | 60 g |
Ordering Code | Electrode Includes |
ISE-NH3 | Ammonia standard solution 1000 ppm (30 mL) |
Ionic strength adjuster (30 mL) | |
Filling solution (30 mL) |
| Items | Description |

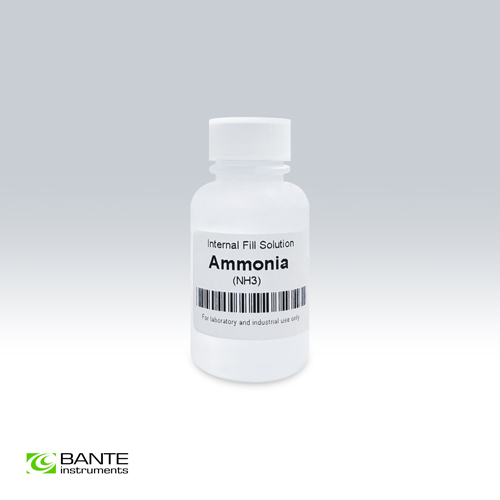

| Ammonia Electrode Filling Solution | For the ISE-NH3 electrode |
| Ammonia Standard Solution | For calibrating ammonia ion selective electrode |
| Ionic Strength Adjuster | For adjusting pH and background ionic strength |
Ordering Code | Dimensions and Weights |
ISE-NH3 | 23 × 10 × 5 cm, 0.1 kg |
