ORP Meters

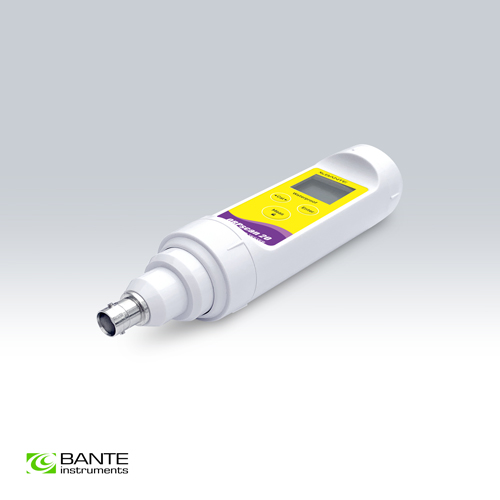

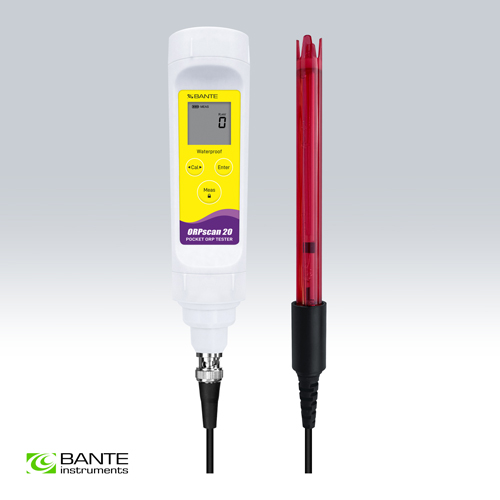

ORPscan20 Pocket ORP Tester
Waterproof pocket ORP tester, 1 point calibration, BNC connector enables easy connection to various ORP electrodes, accuracy 2 mV.
Features:
? High-accuracy ORP tester with relative and absolute millivolt measurement modes.
? 1 point offset calibration allows adjusting the displayed value to a known standard.
? Auto-read function senses and locks the measurement endpoint.
? Auto-power off effectively conserves battery life.
? Reset function automatically restores all settings to the factory defaults.
? Rechargeable battery provides long-lasting power supply.
Applications:
? Assesses redox conditions in water treatment and environmental monitoring.
? Verifies disinfectant activity in potable water systems.
? Controls oxidation–reduction processes in wastewater treatment.
? Monitors redox reactions in chemical and industrial processes.
? Measures oxidizing-agent activity in pool and aquaculture systems.
Model | ORPscan20 | |
ORP | ||
Range | -999 to 999 mV | |
Resolution | 1 | |
Accuracy | ±2 mV | |
Calibration | 1 point | |
Measurment Modes | Relative / Absolute mV | |
Other Specifications | ||
Hold Function | Manual / Auto-read measurement endpoint | |
Auto-Power Off | 8 minutes after last key pressed | |
Display | Dual-line LCD (21 × 21 mm) | |
Power Supply | 3.7V rechargeable battery | |
Battery Life | Approximately 200 hours of continuous use | |
Environmental Conditions | 0 to 50°C / 32 to 122°F, relative humidity < 80% | |
Dimensions | 175 × 40(?) mm | |
Weight | 120 g |

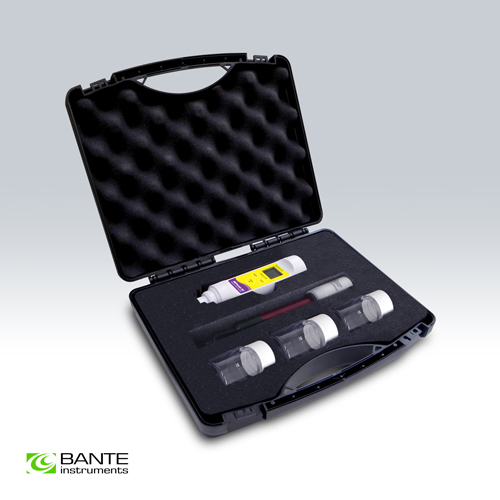

Ordering Code | Tester Includes |
ORPscan20 | E501 ORP electrode |
Solution storage bottles | |
USB cable | |
5V DC power adapter | |
Carrying case |
| Items | Description |
| E501 ORP Electrode | For measuring strong redox potential |
| E502 ORP Electrode | For measuring weak redox potential |
| E504 ORP Electrode | For measuring high temperature samples |
| ORP Standard Solution | For calibrating ORP electrode |
Ordering Code | Dimensions and Weights |
ORPscan20 | 28 × 8 × 25 cm, 1.5 kg |
