Electrodes

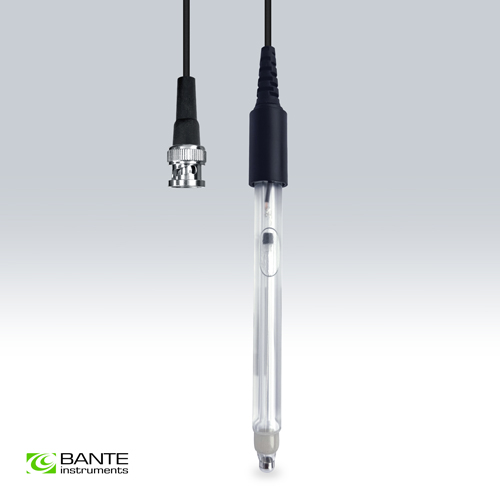

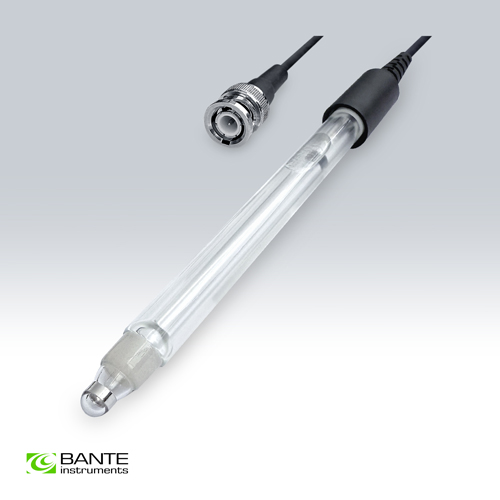

E504 ORP Electrode
Laboratory ORP electrode, suitable for measuring general and mildly corrosive solutions.
Features:
? Glass body can operate in high-temperature and mildly corrosive environments
? Platinum-band sensor accurately measures the mV values of liquids
? Suitable for laboratory application
Model | E504 | |
Range | -2000 to 2000 mV | |
Sensor |
| Platinum-band |
Operating Temperature |
| 0 to 80°C / 32 to 176°F |
Reference |
| Ag/AgCl |
Liquid Junction |
| Annular ceramic |
Body Type | Glass | |
Cable Length | 1 m | |
Connector | BNC | |
Dimensions | 120 × 12(?) mm | |
Weight | 65 g |
Ordering Code | Electrode Includes |
E504 | --- |
| Items | Description |
| ORP Standard Solution | For calibrating ORP electrode |
Ordering Code | Dimensions and Weights |
E504 | 23 × 10 × 5 cm, 0.1 kg |
