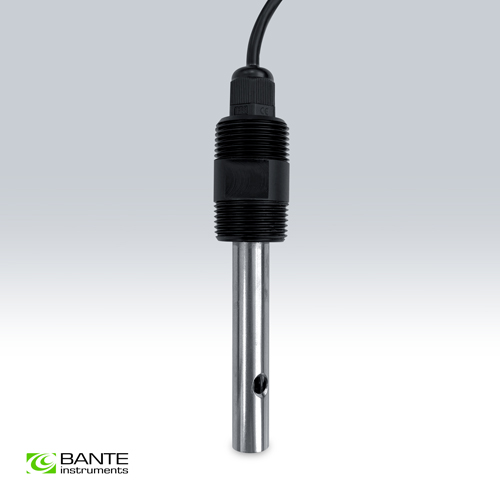

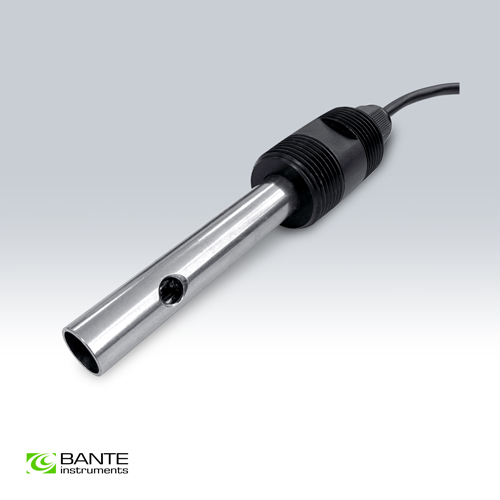

IE-50HT Conductivity Electrode
Industrial conductivity electrode, range: 1 to 200 mS/cm.
Features:
? Platinum cell conductivity electrode
? Suitable for measuring the high conductivity liquids
? Built-in temperature sensor
? Cell constant (K) = 10 cm?1
? 3/4 inch thread
Model | IE-50HT | |
Range | 1 to 200 mS/cm | |
Operating Temperature |
| 0 to 80°C / 32 to 176°F |
Temperature Sensor |
| NTC 10 KΩ |
Maximum Process Pressure |
| 0.6 MPa |
Body Type |
| Stainless steel |
Electrode Diameter |
| 13 mm |
Electrode Length |
| 130 mm |
Maximum Transmission Distance |
| 30 m |
Cable Length |
| 5 m |
Weight | 500 g |
Ordering Code | Electrode Includes |
IE-50HT | --- |
| Items | Description |
| Conductivity Standard Solution | For calibrating conductivity electrode |
Ordering Code | Dimensions and Weights |
IE-50HT | 23 × 7.5 × 8.5 cm, 0.7 kg |
