Polarimeters

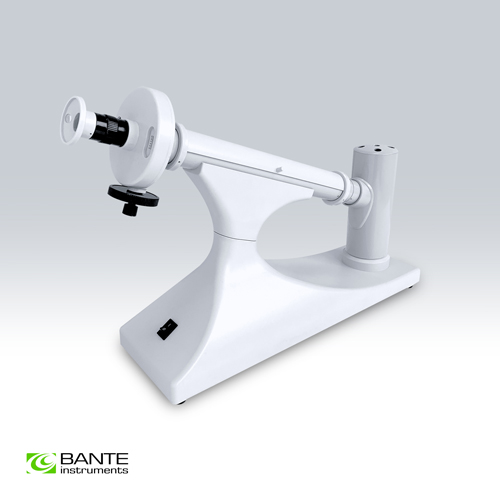

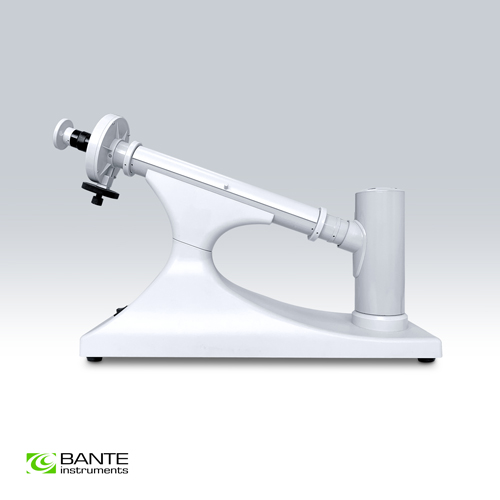

POL-100 Manual Polarimeter
Classic manual polarimeter for measuring the optical rotation of optically active substances, range -180° to +180°, accuracy 0.05°.
Features:
This polarimeter is installed with a 589 nm light source. Switch on the power, the polarized light

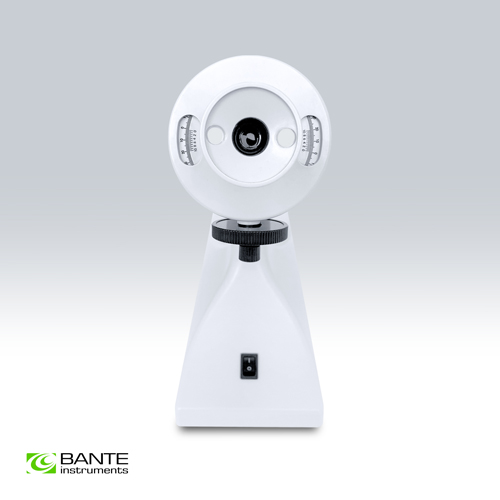

beam passes through the polarizer filter. The operator can observe distinct visual fields through
the eyepiece.
Place a sample tube into the measurement chamber and rotate the vernier knob until the visual
fields appear the equal brightness. Read and record the measured value from the the vernier
scale.
Applications:
? Research and education
? Food and sugar industry
? Flavor and fragrance testing
? Quality control in fine chemicals
Model | POL-100 | WXG-4 | |
Range | -180° to 180° | -180° to 180° | |
Scale Value | 1° | 1° | |
Vernier | 0.05° | 0.05° | |
Magnifier | 3X | 3X | |
Light Source | LED with interference filter | Sodium lamp | |
Wavelength | 589 nm | 589 nm | |
Tube Length | Up to 200 mm | Up to 200 mm | |
Power Supply | AC 110V or 220V | AC 220V | |
Dimensions | 500 × 135 × 330 mm | 500 × 135 × 330 mm | |
Weight | 5 kg | 5 kg |

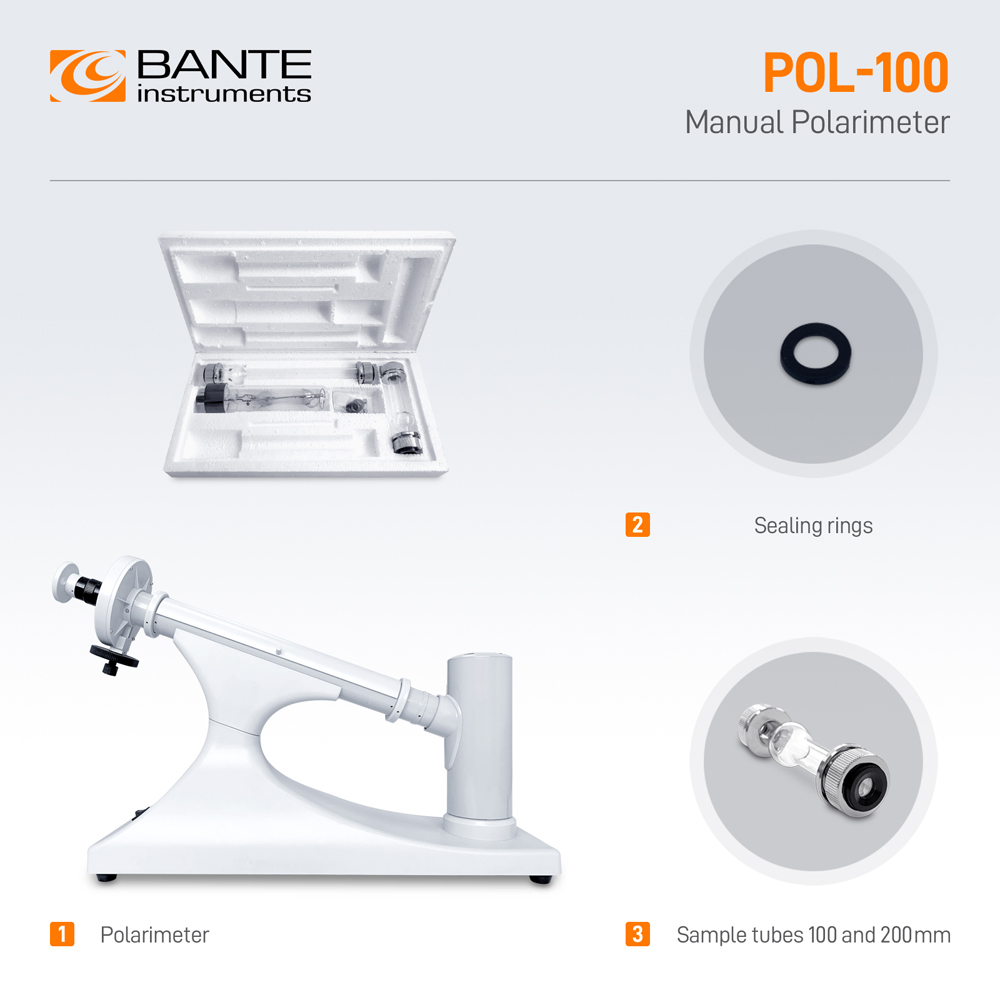

Ordering Code | Polarimeter Includes |
POL-100 | Polarimeter tubes 100 and 200 mm |
Sealing rings | |
WXG-4 | Polarimeter tubes 100 and 200 mm |
| Sodium lamp (220V) | |
Sealing rings |
| Items | Description |
| Polarimeter Tube | For filling sample solution |
| Sodium Lamp | Wavelength 589 nm |
Ordering Code | Dimensions and Weights |
| POL-100 | 60 × 20 × 40 cm, 5 kg |
WXG-4 | 60 × 20 × 40 cm, 5 kg |
