pH Meters

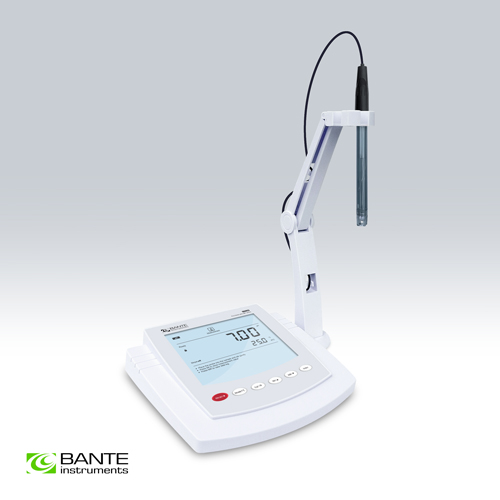

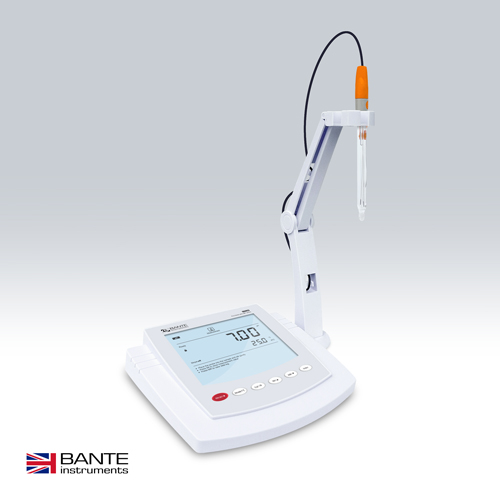

Bante920E Benchtop pH Meter
Classical benchtop pH meter, 1 to 3 points calibration, storage for 100 data sets, setup menu contains 7 options, accuracy 0.01 pH.
Features:
? Classical benchtop pH meter is equipped with a backlit LCD display.
? 1 to 3 points calibration with automatic recognition for USA and NIST buffers.
? Automatic electrode diagnosis shows the pH slope and zero offset.
? Automatic temperature compensation ensures accurate readings over the entire range.
? Auto-read function senses and locks the measurement endpoint.
? Setup menu allows setting the pH buffer set, number of calibration points, temperature unit,
auto-power off, etc.
? Reset function automatically restores all settings to the factory defaults.
? Expanded memory stores or recalls up to 100 data sets.
? USB communication interface enables easy data transfer to a PC.
? DAS software is capable of receiving data, recording measurements at specified intervals,
exporting data to Excel.
Model | Bante920E | |
pH | ||
Range | -2.00 to 20.00 pH | |
Resolution | 0.01 | |
Accuracy | ±0.01 pH | |
Calibration | 1 to 3 points | |
pH Buffer Options | USA (pH 4.01/7.00/10.01) / NIST (pH 4.01/6.86/9.18) | |
mV | ||
Range | -1999 to 1999 mV | |
Resolution | 0.1 (0 to 999.9mV), 1 (1000 to 1999mV) | |
Accuracy | ±0.5 mV | |
Temperature | ||
Range | 0 to 105°C / 32 to 221°F | |
Resolution | 0.1 | |
Accuracy | ±0.5°C / ±0.9°F | |
Calibration | 1 point | |
Calibration Range | Reading ±10°C/°F | |
Other Specifications | ||
Temperature Compensation | 0 to 100°C / 32 to 212°F, manual or automatic | |
Hold Function | Manual / Auto-read measurement endpoint | |
Memory | Stores up to 100 data sets | |
Output | USB communication interface | |
Connector | BNC, 3.5 mm jack socket | |
Display | Custom LCD (125 × 100 mm) | |
Power Supply | 5V DC power adapter | |
Environmental Conditions | 0 to 50°C / 32 to 122°F, relative humidity < 80% | |
Dimensions | 210 × 188 × 60 mm | |
Weight | 1.5 kg |

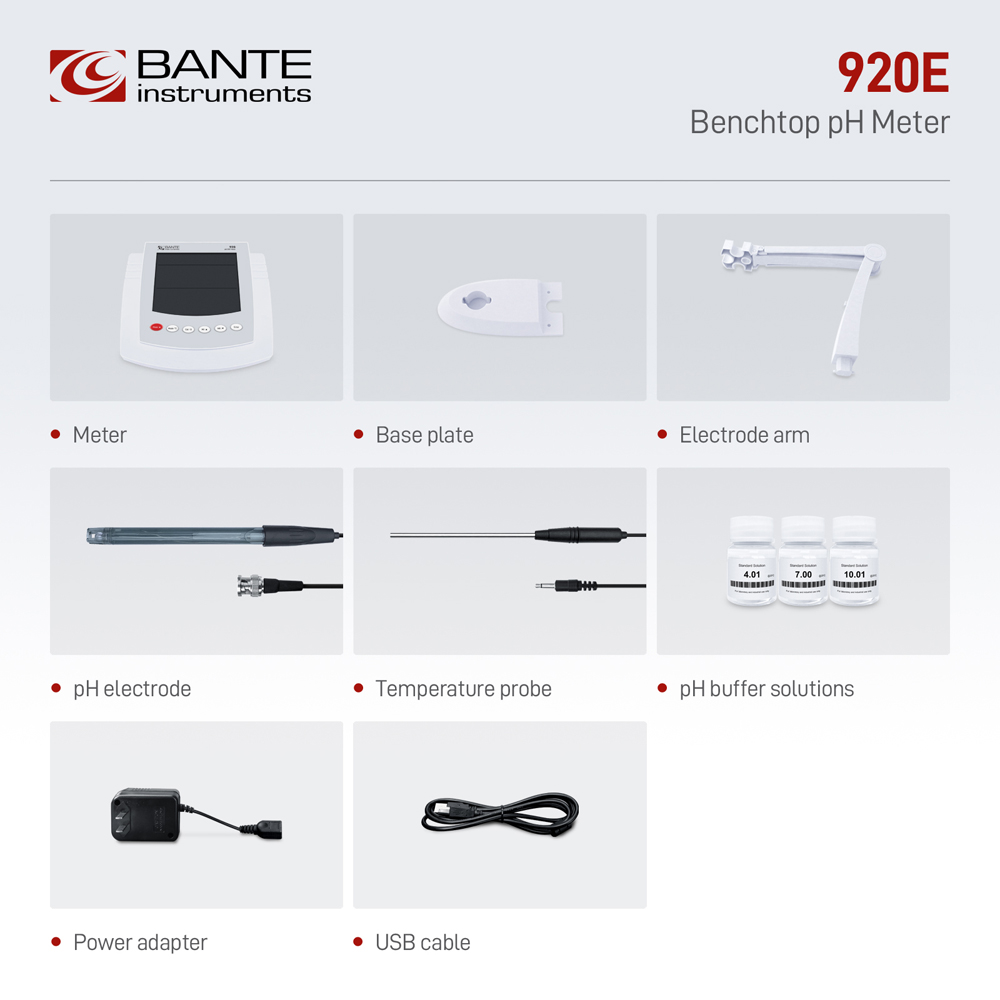

Ordering Code | Meter Includes |
Bante920E-S | E201-BNC pH electrode |
TP-10K temperature probe | |
pH 4.01, 7.00, 10.01 buffer solutions | |
USB cable | |
5V DC power adapter | |
Bante920E-UK | P11 glass pH electrode |
TP-10K temperature probe | |
pH 4.01, 7.00, 10.01 buffer solutions | |
USB cable | |
5V DC power adapter |
| Items | Description |
| E201-BNC pH Electrode | For measuring general water samples |
| E202-BNC pH Electrode | For measuring semi-solid samples |
| E203-BNC pH Electrode | For outdoor applications |
| E205-BNC pH Electrode | For piercing and measuring soft solid samples |
| E206-BNC pH Electrode | For measuring micro-volume samples |
| E207-BNC pH Electrode | For measuring non-aqueous samples |
| E208-BNC pH Electrode | For measuring wastewater |
| E209-BNC pH Electrode | For measuring samples with hydrofluoric acid |
| E210-BNC pH Electrode | For measuring high temperature samples |
| E211-BNC pH Electrode | For measuring pure water |
| P11 pH Electrode | For measuring mildly corrosive samples |
| P16 pH Electrode | For measuring Tris-buffered samples |
| pH Buffer Solution | For calibrating pH electrodes |
| pH Electrode Cleaning Solution | For cleaning and reactivating pH electrodes |
| pH Electrode Storage Solution | For maintaining and storing pH electrodes |
Ordering Code | Dimensions and Weights |
Bante920E-S | 30 × 25 × 20 cm, 1.7 kg |
Bante920E-UK | 30 × 25 × 20 cm, 1.7 kg |
