Water Hardness Meters

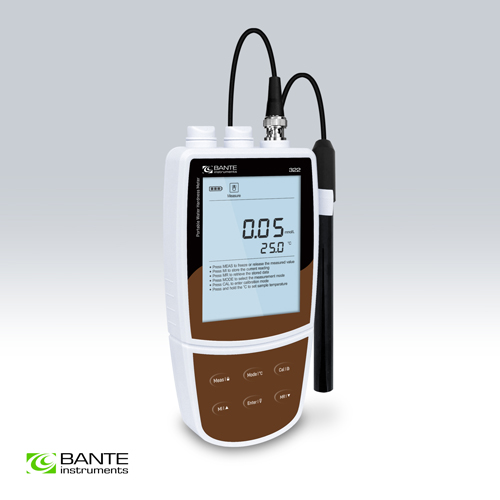

Bante322 Portable Water Hardness Meter
Professional portable water hardness meter for outdoor applications, accuracy 1% F.S.
Features:
? Professional portable water hardness meter is equipped with a backlit LCD display.
? 2 to 5 points calibration from low to high concentrations.
? Selectable water hardness units, including the German degree (°dH), English degree (°e)，
French degree (°fH), mg/L and mmol/L.
? Automatic temperature compensation ensures accurate readings over the entire range.
? Auto-read function senses and locks the measurement endpoint.
? Calibration due alarm reminds user to calibrate the meter regularly.
? Auto-power off effectively conserves battery life.
? Setup menu allows setting the number of calibration points, stability criteria, etc.
? Reset function automatically restores all settings to the factory defaults.
? Expanded memory stores or recalls up to 500 data sets.
? USB communication interface enables easy data transfer to a PC.
? DAS software is capable of receiving data, recording measurements at specified intervals,
exporting data to Excel.
? Multi-mode power scheme (batteries, power adapter, USB port) ensures the smooth operation
of the meter.
Model | Bante322 | |
Water Hardness | ||
Range (Concentration) |
| 0.05 to 200 mmol/L |
Range (German Degree) |
| 0 to 1122°dH |
Range (English Degree) |
| 0 to 1404°e |
Range (French Degree) |
| 0 to 2000°fH |
Range (CaCO?) |
| 0 to 19999 mg/L |
Range (CaO) |
| 0 to 11220 mg/L |
Range (Boiler) |
| 0 to 400 mmol/L |
Range (Ca2?) |
| 0 to 8020 mg/L |
Resolution |
| 0.001, 0.01, 0.1, 1, automatic |
Accuracy |
| ±1% F.S. |
Calibration |
| 2 to 5 points |
Calibration Solutions |
| 0.01 / 0.1 / 1 / 10 / 100 mmol/L |
Temperature | ||
Range | 0 to 105°C | |
Resolution | 0.1 | |
Accuracy | ±0.5°C | |
Calibration | 1 point | |
Calibration Range | Reading ±10°C | |
Other Specifications | ||
Temperature Compensation | 0 to 50°C / 32 to 122°F, manual or automatic | |
Hold Function | Manual / Auto-read measurement endpoint | |
Stability Criteria | Low / High | |
Calibration Due Alarm | 1 to 31 days or off | |
Auto-Power Off | 10 / 20 / 30 minutes after last key pressed | |
Memory | Stores up to 500 data sets | |
Output | USB communication interface | |
Connector | BNC, 3.5 mm jack socket | |
Display | Custom LCD (80 × 60 mm) | |
Power Supply | 3 × 1.5V AA batteries or 5V DC power adapter | |
Battery Life | Approximately 150 hours without backlight | |
Environmental Conditions | 0 to 50°C / 32 to 122°F, relative humidity < 80% | |
Dimensions | 170 × 85 × 30 mm | |
Weight | 300 g |

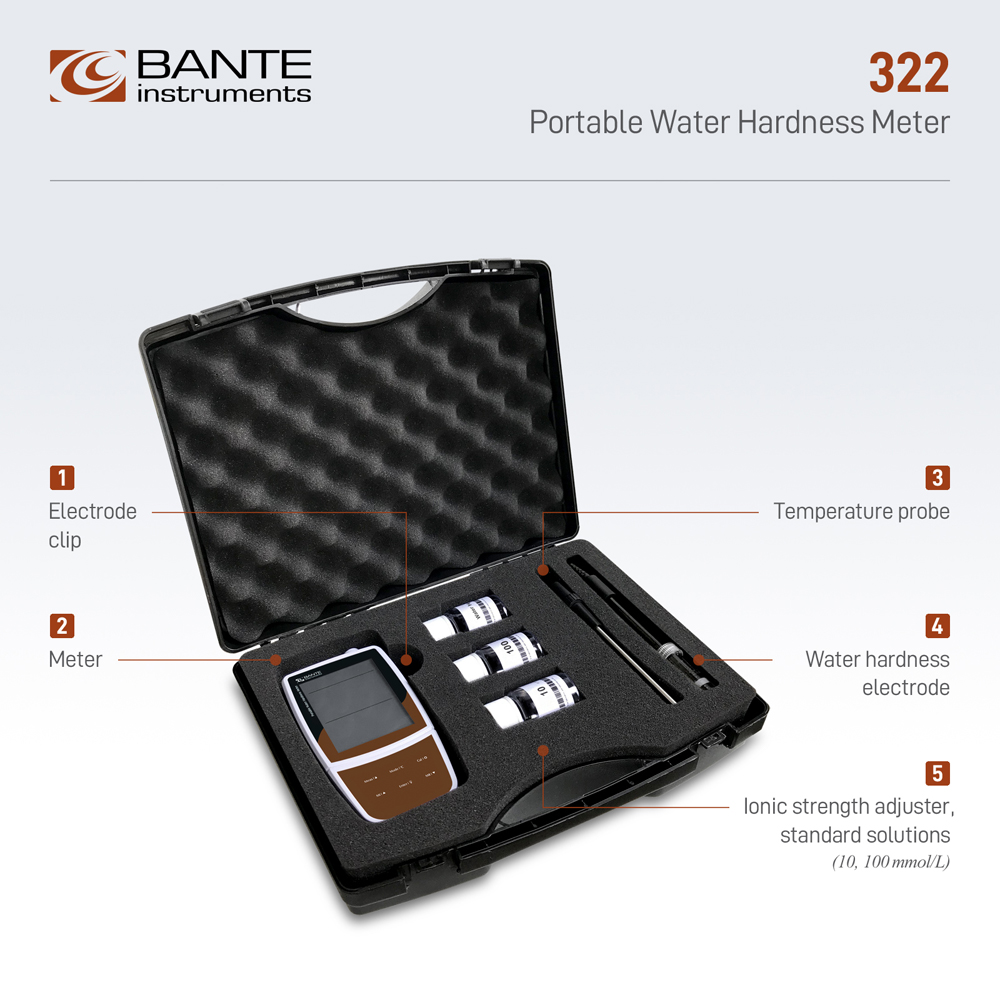

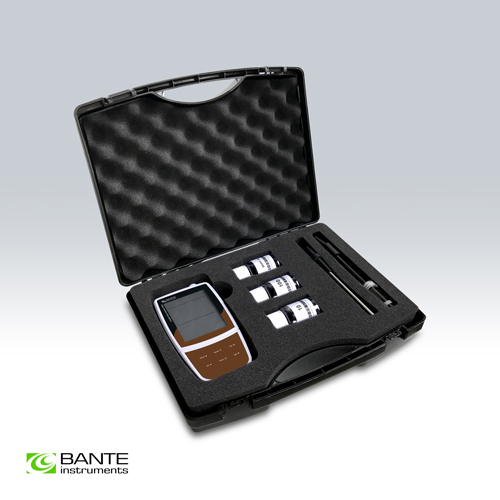

Ordering Code | Meter Includes |
Bante322 | ISE-WH water hardness electrode |
TP-10K temperature probe | |
Water hardness standard solutions 10, 100 mmol/L | |
Ionic strength adjuster | |
| Electrode clip | |
Carrying case |
| Items | Description |
| ISE-WH Water Hardness Electrode | Range: 0.05 to 200 mmol/L |
| Water Hardness Standard Solution | For calibrating water hardness electrode |
| Ionic Strength Adjusters | For adjusting pH and background ionic strength |
| USB Cable | For transferring data or connecting power adapter |
| 5V DC Power Adapter | For connecting external power source |
Ordering Code | Dimensions and Weights |
Bante322 | 35 × 10 × 30 cm, 1.5 kg |
