TDS Meters

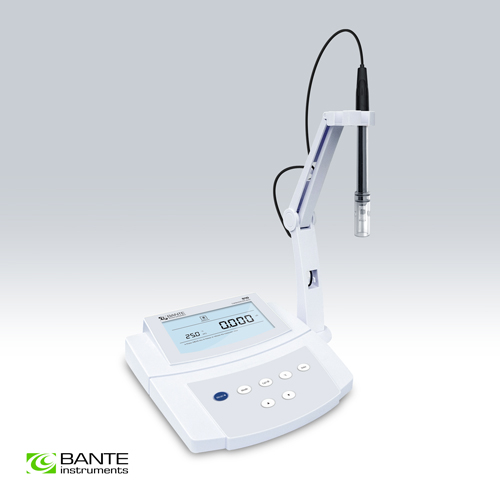

Bante510 Benchtop Conductivity/TDS Meter
Classical benchtop conductivity/TDS meter, 1 to 3 points calibration, selectable TDS conversion factor, setup menu contains 7 options, accuracy 1% F.S.
Features:
? Classical benchtop conductivity/TDS meter is equipped with a platinum sensor.
? 1 to 3 points calibration with automatic recognition for conductivity standards.
? Selectable cell constant, temperature coefficient and TDS conversion factor.
? Automatic temperature compensation corrects conductivity measurements to the reference
temperature.
? Auto-read function senses and locks the measurement endpoint.
? Setup menu allows setting the number of calibration points, temperature unit, etc.
? Reset function automatically restores all settings to the factory defaults.
Applications:
Water quality analysis, education and other industrial applications.
Model | Bante510 | |
Conductivity | ||
Range | 0 to 20.00, 200.0, 2000 μS/cm, 20.00, 200.0 mS/cm | |
Resolution | 0.001, 0.01, 0.1, 1, automatic | |
Accuracy | ±1% F.S. | |
Calibration | 1 to 3 points | |
Calibration Solutions | 10 μS / 84 μS / 1413 μS / 12.88 mS / 111.8 mS | |
TDS | ||
Range | 0 to 10.00, 100.0, 1000 ppm, 10.00, 200.0 ppt | |
Resolution | 0.01, 0.1, 1, automatic | |
Accuracy | ±1% F.S. | |
TDS Conversion Factor | 0.1 to 1.0 (default 0.5) | |
Temperature | ||
Range | 0 to 105°C / 32 to 221°F | |
Resolution | 0.1 | |
Accuracy | ±1°C / ±1.8°F | |
Calibration | 1 point | |
Calibration Range | Reading ±10°C/°F | |
Other Specifications | ||
Temperature Compensation | 0 to 100°C / 32 to 212°F, manual or automatic | |
Temperature Coefficient | 0.0 to 9.9%/°C | |
Reference Temperature | 25°C | |
Cell Constant | K=0.1 / 1 / 10 / Custom | |
Hold Function | Manual / Auto-read measurement endpoint | |
Connector | 6-pin mini-DIN, 3.5 mm jack socket | |
Display | Custom LCD (135 × 75 mm) | |
Power Supply | 9V DC power adapter | |
Dimensions | 210 × 205 × 75 mm | |
Weight | 1.5 kg |
Ordering Code | Meter Includes |

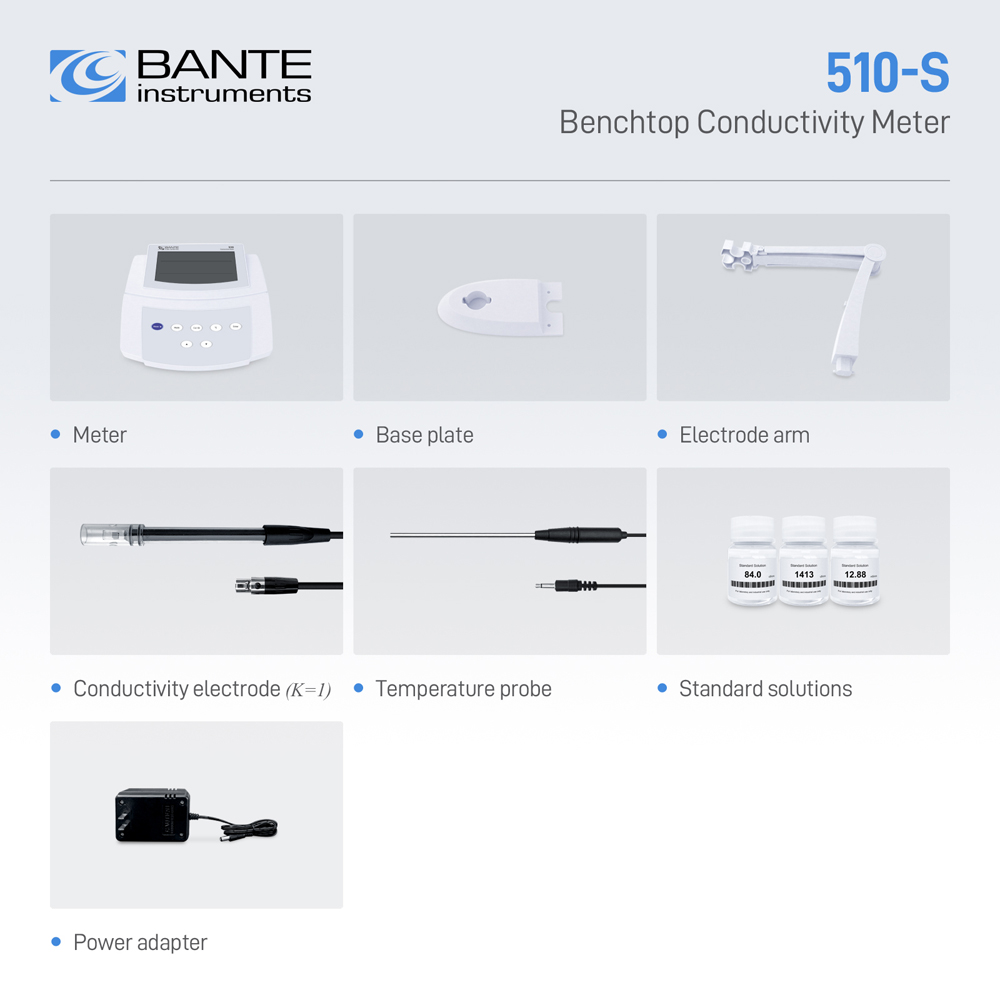

Bante510-S | CON-1 conductivity electrode |
TP-10K temperature probe | |
Conductivity standard solutions 84 μS/cm, 1413 μS/cm, 12.88 mS/cm | |
9V DC power adapter | |

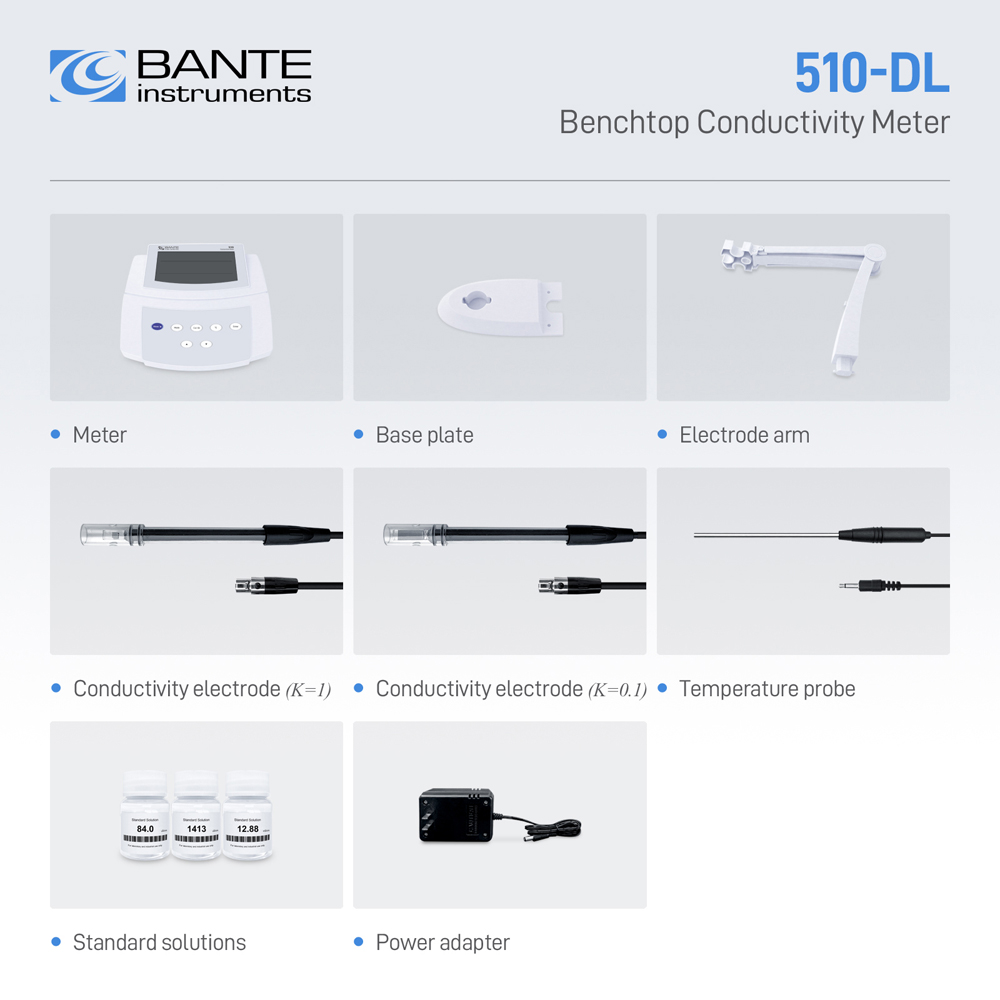

Bante510-DL | CON-0.1 conductivity electrode |
CON-1 conductivity electrode | |
TP-10K temperature probe | |
Conductivity standard solutions 84 μS/cm, 1413 μS/cm, 12.88 mS/cm | |
9V DC power adapter | |

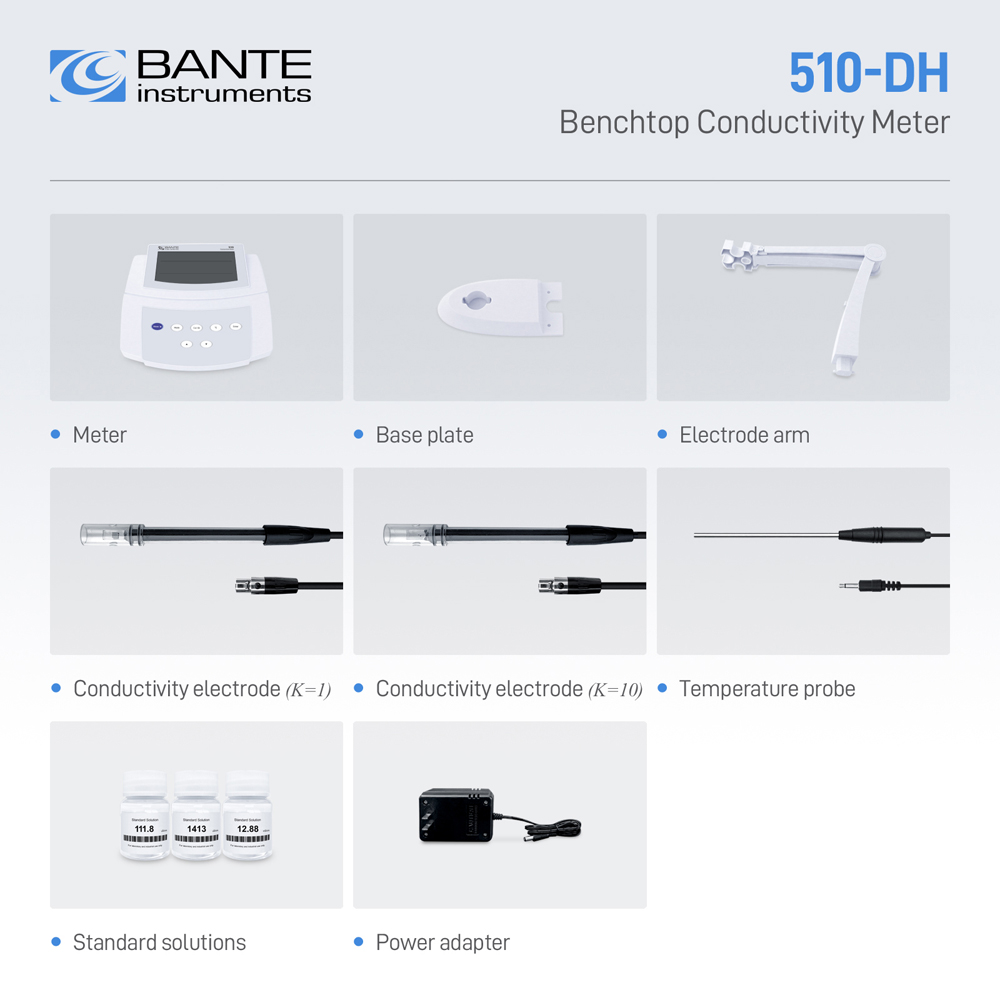

Bante510-DH | CON-1 conductivity electrode |
CON-10 conductivity electrode | |
TP-10K temperature probe | |
Conductivity standard solutions 1413 μS/cm, 12.88 mS/cm, 111.8 mS/cm | |
9V DC power adapter |
| Items | Description |
| CON-0.1 Conductivity Electrode | For measuring low conductivity solutions |
| CON-1 Conductivity Electrode | For measuring general solutions |
| CON-10 Conductivity Electrode | For measuring high conductivity solutions |
| TP-10K Temperature Probe | For temperature compensation and measurement |
| Conductivity Flow Cell | For measuring pure and ultrapure water |
| Conductivity Standard Solution | For calibrating conductivity electrode |
Ordering Code | Dimensions and Weights |
Bante510-S | 30 × 25 × 20 cm, 1.7 kg |
Bante510-DL | 30 × 25 × 20 cm, 1.7 kg |
Bante510-DH | 30 × 25 × 20 cm, 1.7 kg |
