Conductivity Meters

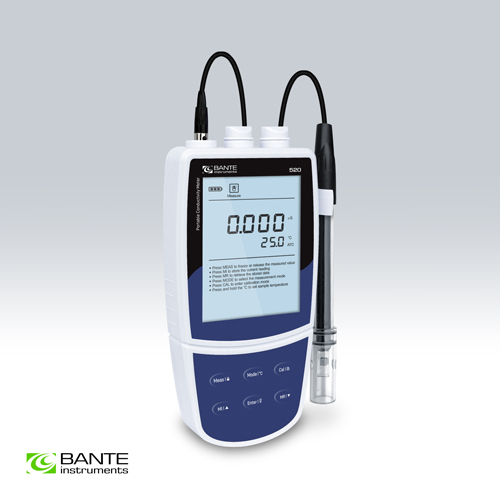

Bante520 Portable Conductivity Meter
Economical portable conductivity meter, selectable cell constant and temperature coefficient, 1 to 3 point calibration, setup menu contains 8 options, accuracy 0.5% F.S.
Features:
? Economical portable conductivity meter is equipped with a backlit LCD display.
? 1 to 3 points calibration with automatic recognition for conductivity standards.
? Selectable cell constant (K=0.1/1/10), reference temperature (20/25°C), linear/non-linear and
pure water compensation modes.
? Automatic temperature compensation corrects conductivity measurements to the reference
temperature.
? Auto-read function senses and locks the measurement endpoint.
? Auto-power off effectively conserves battery life.
? Setup menu allows setting the number of calibration points, temperature unit, etc.
? Reset function automatically restores all settings to the factory defaults.
? Expanded memory stores or recalls up to 100 data sets.
? USB communication interface for data transfer or connecting a power adapter to the meter.
? DAS software is capable of receiving data, recording measurements at specified intervals,
exporting data to Excel.
Applications:
? Bante520-S: For measuring general solutions
? Bante520-DL: For measuring low conductivity solutions, pure water
? Bante520-DH: For measuring high conductivity solutions, electrolyte solutions, seawater
Model | Bante520 | |
Conductivity | ||
Range | 0 to 20.00, 200.0, 2000 μS/cm, 20.00, 200.0 mS/cm | |
Resolution | 0.001, 0.01, 0.1, 1, automatic | |
Accuracy | ±0.5% F.S. | |
Calibration | 1 to 3 points | |
Calibration Solutions | 10 μS / 84 μS / 1413 μS / 12.88 mS / 111.8 mS | |
Temperature | ||
Range | 0 to 105°C / 32 to 221°F | |
Resolution | 0.1 | |
Accuracy | ±0.5°C / ±0.9°F | |
Calibration | 1 point | |
Calibration Range | Reading ±10°C/°F | |
Other Specifications | ||
Temperature Compensation | 0 to 100°C / 32 to 212°F, manual or automatic | |
Temperature Coefficient | Linear (0.0 to 10.0%/°C) / Non-linear / Pure water | |
Reference Temperature | 20 / 25°C | |
Cell Constant | K=0.1 / 1 / 10 | |
Auto-Power Off | 30 minutes after last key pressed | |
Memory | Stores up to 100 data sets | |
Output | USB communication interface | |
Connector | 6-pin mini-DIN, 3.5 mm jack socket | |
Display | Custom LCD (80 × 60 mm) | |
Power Supply | 3 × 1.5V AA batteries or 5V DC power adapter | |
Battery Life | Approximately 150 hours without backlight | |
Environmental Conditions | 0 to 50°C / 32 to 122°F, relative humidity < 80% | |
Dimensions | 170 × 85 × 30 mm | |
Weight | 300 g |
Ordering Code | Meter Includes |
Bante520-S | CON-1 conductivity electrode |
TP-10K temperature probe | |
Conductivity standard solutions 84 μS/cm, 1413 μS/cm, 12.88 mS/cm | |
| Electrode clip | |
Carrying case | |
Bante520-DL | CON-0.1 conductivity electrode |
CON-1 conductivity electrode | |
TP-10K temperature probe | |
Conductivity standard solutions 84 μS/cm, 1413 μS/cm, 12.88 mS/cm | |
| Electrode clip | |
Carrying case | |

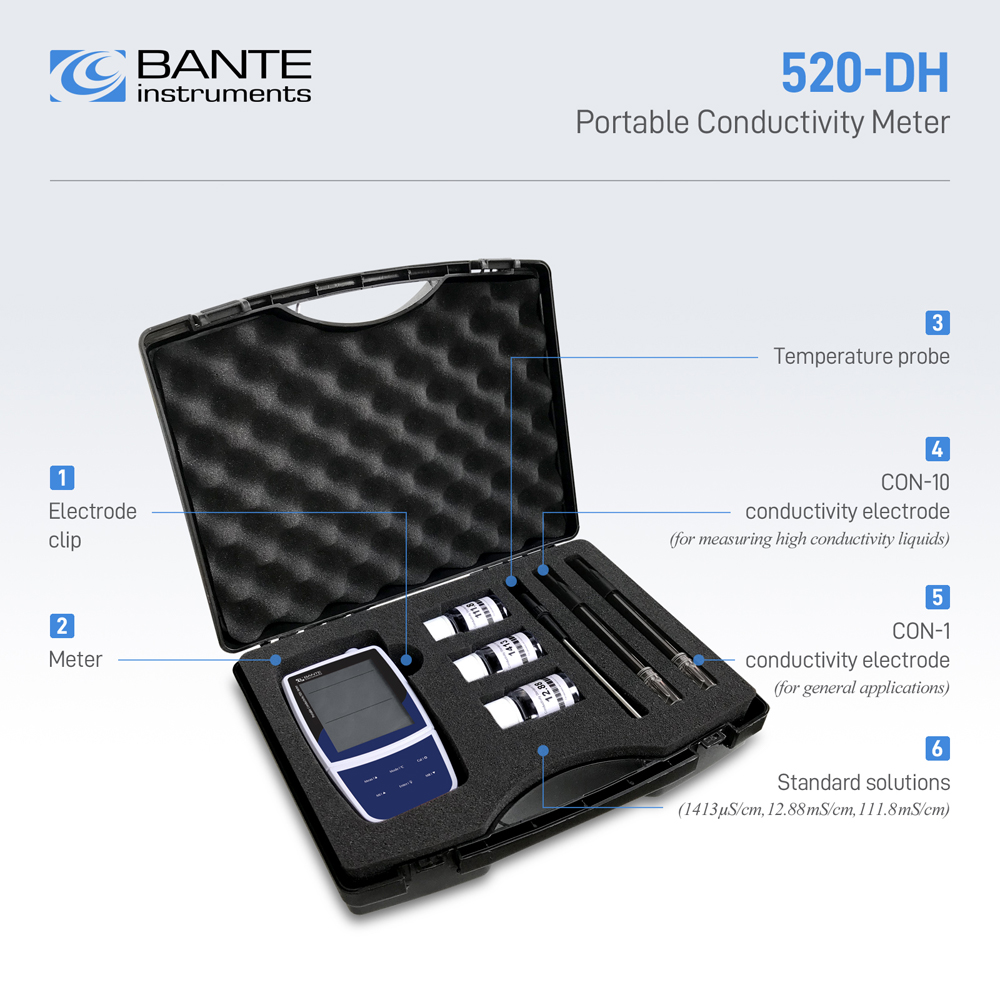

Bante520-DH | CON-1 conductivity electrode |
CON-10 conductivity electrode | |
TP-10K temperature probe | |
Conductivity standard solutions 1413 μS/cm, 12.88 mS/cm, 111.8 mS/cm | |
| Electrode clip | |
Carrying case |
| Items | Description |
| CON-0.1 Conductivity Electrode | For measuring low conductivity solutions |
| CON-1 Conductivity Electrode | For measuring general solutions |
| CON-10 Conductivity Electrode | For measuring high conductivity solutions |
| Conductivity Flow Cell | For measuring pure and ultrapure water |
| Conductivity Standard Solution | For calibrating conductivity electrode |
| USB Cable | For data transfer |
| 5V DC Power Adapter | For connecting external power source |
Ordering Code | Dimensions and Weights |
Bante520-S | 35 × 10 × 30 cm, 1.5 kg |
Bante520-DL | 35 × 10 × 30 cm, 1.5 kg |
Bante520-DH | 35 × 10 × 30 cm, 1.5 kg |
