Conductivity Meters

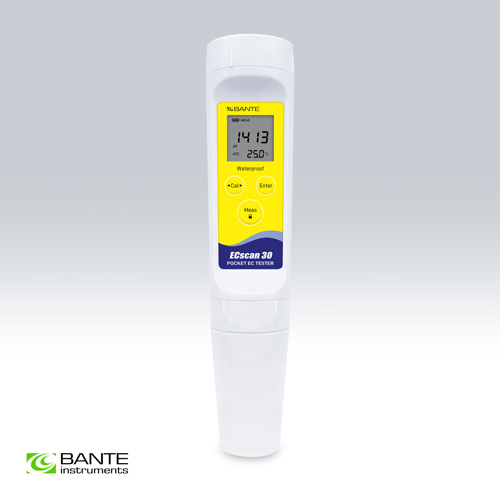

ECscan30 Pocket Conductivity/TDS Tester
Multi-range pocket conductivity tester with TDS measurement mode, 1 to 3 points calibration, setup menu contains 6 options, accuracy 1% F.S.
Features:
? Multi-range pocket conductivity tester with dual-line LCD display.
? Platinum black-coated sensor provides quick and reliable measurement results.
? 1 to 3 points calibration with automatic recognition for conductivity standards.
? Automatic temperature compensation corrects measurements to the reference temperature.
? Auto-read function senses and locks the measurement endpoint.
? Auto-power off effectively conserves battery life.
? Setup menu allows setting the number of calibration points, TDS factor, temperature unit, etc.
? Reset function automatically restores all settings to the factory defaults.

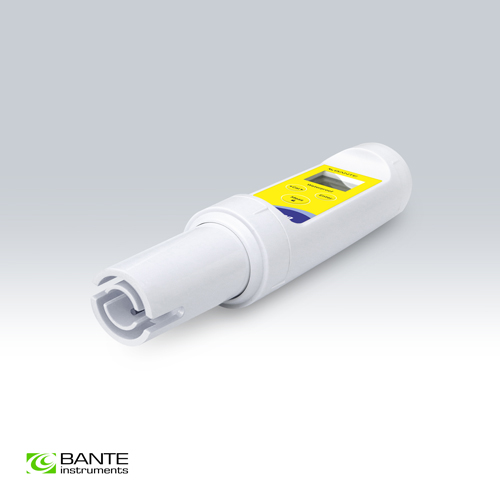

? Replaceable electrode module reduces maintenance and replacement cost.
? Rechargeable battery provides long-lasting power supply.

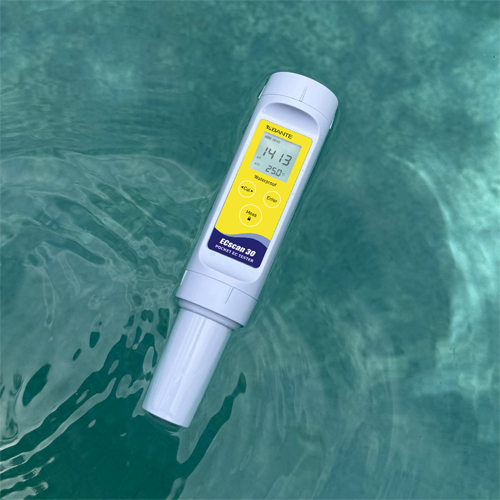

? Waterproof feature to ensure complete protection in harsh environments.
Model | ECscan30 | |
Conductivity | ||
Range | 0 to 20.00, 200.0, 2000 μS/cm, 20.00 mS/cm | |
Resolution | 0.01, 0.1, 1, automatic | |
Accuracy | ±1% F.S. | |
Calibration | 1 to 3 points | |
Calibration Solutions | 84 μS / 1413 μS / 12.88 mS | |
TDS | ||
Range |
| 0 to 10.00, 100.0, 1000 ppm, 20.00 ppt |
Resolution |
| 0.01, 0.1, 1, automatic |
Accuracy |
| ±1% F.S. |
TDS Conversion Factor |
| 0.1 to 1.0 (default 0.5) |
Temperature | ||
Range | 0 to 60°C / 32 to 140°F | |
Resolution | 0.1 | |
Accuracy | ±1°C / ±1.8°F | |
Calibration | 1 point | |
Calibration Range | Reading ±10°C/°F | |
Other Specifications | ||
Temperature Compensation | 0 to 60°C / 32 to 140°F, automatic | |
Temperature Coefficient | 2%/°C | |
Reference Temperature | 25°C | |
Cell Constant | K=1 | |
Hold Function | Manual / Auto-read measurement endpoint | |
Auto-Power Off | 8 minutes after last key pressed | |
Display | Dual-line LCD (21 × 21 mm) | |
Power Supply | 3.7V rechargeable battery | |
Battery Life | Approximately 200 hours of continuous use | |
Environmental Conditions | 0 to 50°C / 32 to 122°F, relative humidity < 80% | |
Dimensions | 185 × 40(?) mm | |
Weight | 120 g |

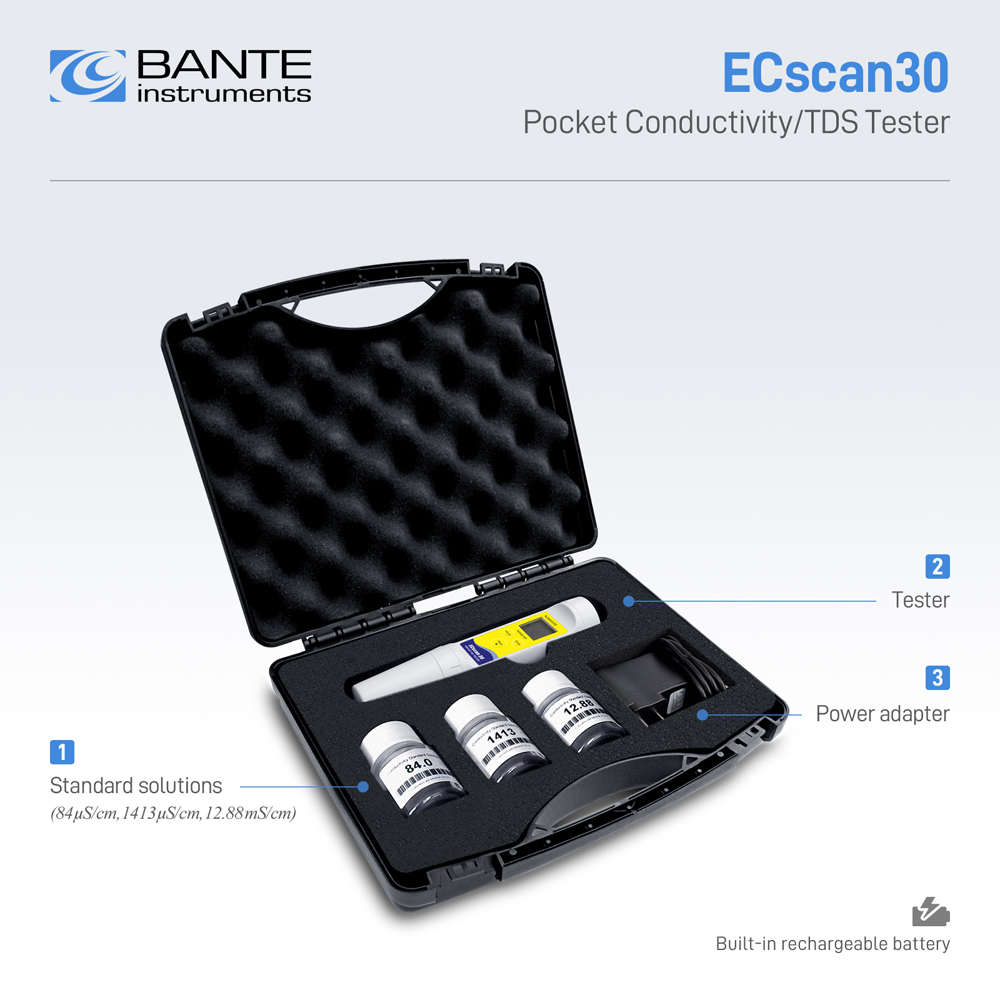

Ordering Code | Tester Includes |
ECscan30 | Conductivity standard solutions 84 μS/cm, 1413 μS/cm, 12.88 mS/cm |
USB cable | |
5V DC power adapter | |
Carrying case |
| Items | Description |
| E-ECscan-C1-10K Electrode | For measuring general solutions |
| Conductivity Standard Solution | For calibrating conductivity electrode |
Ordering Code | Dimensions and Weights |
ECscan30 | 28 × 8 × 25 cm, 1.5 kg |
