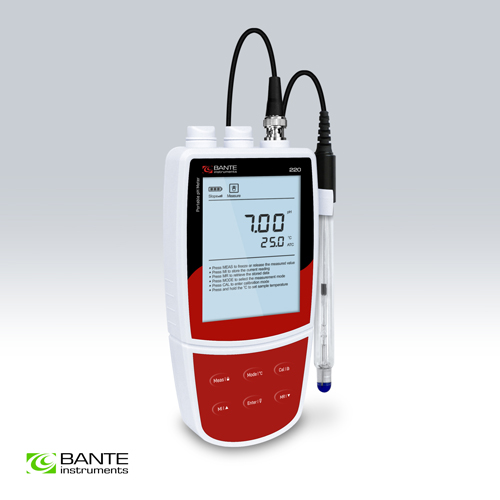

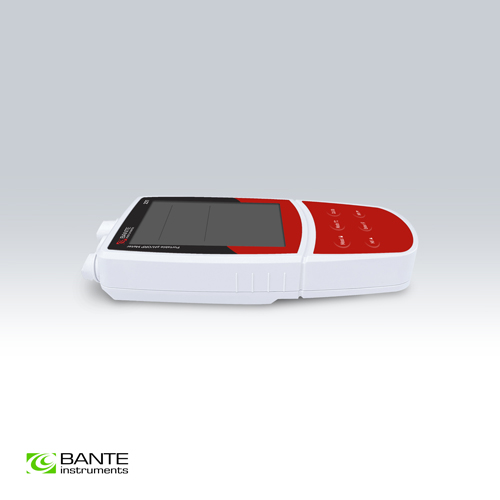

Bante220-HT Portable pH Meter
High-performance portable pH meter for measuring high temperature solutions, 1 to 3 points calibration, setup menu contains 7 options, accuracy 0.01 pH.
Features:
? High-performance portable pH meter is equipped with a round-bulb pH electrode.
? 1 to 3 points calibration with automatic recognition for USA and NIST buffers.
? Automatic electrode diagnosis provides zero-point offset and electrode slope information.
? Automatic temperature compensation ensures accurate readings over the entire range.
? Auto-read function senses and locks the measurement endpoint.
? Auto-power off effectively conserves battery life.
? Setup menu allows setting the pH buffer set, number of calibration points, temperature unit,
etc.
? Reset function automatically restores all settings to the factory defaults.
? Expanded memory stores or recalls up to 100 data sets.
? USB communication interface for data transfer or connecting a power adapter to the meter.
? DAS software is capable of receiving data, recording measurements at specified intervals,
exporting data to Excel.
Applications:
High temperature solutions (< 130°C / 266°F).
Model | Bante220-HT | |
pH | ||
Range | 0.00 to 12.00 pH | |
Resolution | 0.01 | |
Accuracy | ±0.01 pH | |
Calibration | 1 to 3 points | |
pH Buffer Options | USA (pH 4.01/7.00/10.01) / NIST (pH 4.01/6.86/9.18) | |
mV | ||
Range | -1999 to 1999 mV | |
Resolution | 0.1 (0 to 999.9mV), 1 (1000 to 1999mV) | |
Accuracy | ±1 mV | |
Temperature | ||
Range | 0 to 105°C / 32 to 221°F | |
Resolution | 0.1 | |
Accuracy | ±0.5°C / ±0.9°F | |
Calibration | 1 point | |
Calibration Range | Reading ±10°C/°F | |
Other Specifications | ||
Temperature Compensation | 0 to 100°C / 32 to 212°F, manual or automatic | |
Hold Function | Manual / Auto-read measurement endpoint | |
Auto-Power Off | 30 minutes after last key pressed | |
Memory | Stores up to 100 data sets | |
Output | USB communication interface | |
Connector | BNC, 3.5 mm jack socket | |
Display | Custom LCD (80 × 60 mm) | |
Power Supply | 3 × 1.5V AA batteries or 5V DC power adapter | |
Battery Life | Approximately 150 hours without backlight | |
Environmental Conditions | 0 to 50°C / 32 to 122°F, relative humidity < 80% | |
Dimensions | 170 × 85 × 30 mm | |
Weight | 300 g |
Ordering Code | Meter Includes |
Bante220-HT | E210-BNC glass pH electrode |
TP-10K temperature probe | |
pH 4.01, 7.00, 10.01 buffer solutions | |
| Electrode clip | |
Carrying case |
| Items | Description |

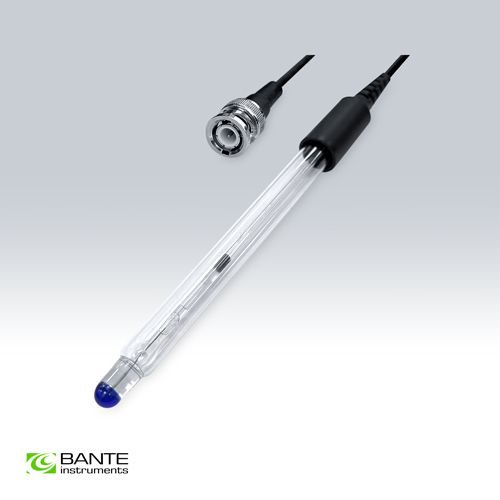

| E210-BNC pH Electrode | For measuring high temperature samples |
| pH Buffer Solution | For calibrating pH electrodes |
| pH Electrode Cleaning Solution | For cleaning and reactivating pH electrodes |
| pH Electrode Storage Solution | For maintaining and storing pH electrodes |
| USB Cable | For data transfer |
| 5V DC Power Adapter | For connecting external power source |
Ordering Code | Dimensions and Weights |
Bante220-HT | 35 × 10 × 30 cm, 1.5 kg |
